StatBean Name: TimeSeriesPlot

Purpose: Displays horizontal or vertical line plots of a numeric column versus time.

DataSource: any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
baseline	double	The base from which vertical lines extend in a vertical plot.	Any double	0.0
connected	boolean	Whether the points should be connected with a line.	true,false	false
drawVertical	boolean	Whether to create a vertical time sequence plot.	true,false	false
points	boolean	Whether point symbols should be plotted.	true,false	true
referenceLine	String	Type of additional reference line, if any, to be added to the plot.	"None", "Horizontal", "Vertical", "Diagonal"	"None"
referenceLineColor	Color	Color for drawing the reference line.	Any valid color.	Color.black
referenceLineLocation	double	Location of a horizontal or vertical reference line.	Any double value.	0.0
samplingInterval	double	The length of time between consecutive data values.	Any double > 0.0	1.0
smootherColor	Color	Color for drawing the smooth.	Any valid color.	Color.blue
smoothVariableName	String	The name of the column with smoothed data values.	Any string.	""
startTime	String	The value of time associated with row 1.	Any string resulting in the proper type of value.	"1.0"
timeScale	String	The type of time units.	"Year","Quarter","Month","Day", "Hour","Minute","Second","Other"	"Other"
timeSeriesVariableName	String	The name of the column with data values to be plotted.	Any string.	""

Other properties are inherited from the java.awt.Canvas class and from the general GraphicalStatbean class.

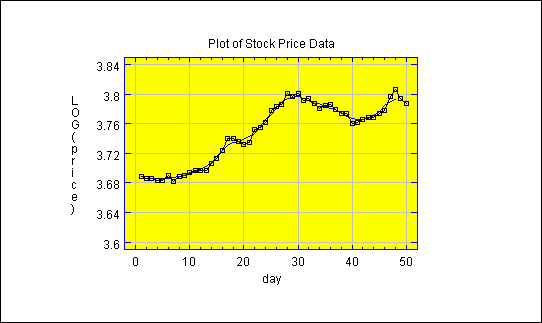

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\stocks.txt");

//create a plot bean
TimeSeriesPlot plot1 = new STATBEANS.TimeSeriesPlot();

//create an adjustment bean
TimeSeriesAdjustments adjust1 = new STATBEANS.TimeSeriesAdjustments();
//take the logs of the time series data

adjust1.setTimeSeriesVariableName("price");
adjust1.setMathAdjustment("LOG");

//smooth the adjusted data
TimeSeriesSmoothing smooth1=new TimeSeriesSmoothing();
smooth1.setTimeSeriesVariableName("Adjusted Data");
smooth1.setSmoother1Type("MA");
smooth1.setSmoother1Span(5);

//override the top title
plot1.setTopTitleLine1("Plot of Stock Price Data");

//override the axis titles
plot1.setXaxisTitle("day");
plot1.setYaxisTitle("LOG(price)");

//set the variable names for plotting
plot1.setTimeSeriesVariableName("Adjusted Data");
plot1.setSmoothVariableName("Smoothed Data");

//add the plot to the application frame
add(plot1);

//make the adjustment bean a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(adjust1.listenerForDataChange);

//make the smoothing bean a listener for changes in the adjustment bean
adjust1.addDataChangeListener(smooth1.listenerForDataChange);

//make the plot bean a listener for changes in the smoothing bean
smooth1.addDataChangeListener(plot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
