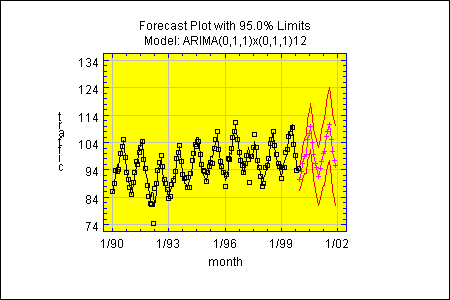

StatBean Name: TimeSeriesForecastPlot

Purpose: Plots forecast for a time series.

DataSource: TimeSeriesForecast.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
confidenceLimitsColor	Color	The color of the confidence limits.	Any valid Color.	Color.red
forecastColor	Color	The color of the forecasts.	Any valid Color.	Color.magenta
lastPeriodsToPlot	int	The number of data values to plot in addition to the forecasts.	0+, or -1 for all	-1
showConfidenceLimits	boolean	Whether to display confidence limits for the forecasts.	true,false	true

Other properties are inherited from the java.awt.Canvas class and from the general GraphicalStatbean class.

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\bridge.txt");

//create a forecasting bean
TimeSeriesForecast forecast1 = new STATBEANS.TimeSeriesForecast();

//set variable name
forecast1.setTimeSeriesVariableName("traffic");

//set time scale
forecast1.setTimeScale("month");
forecast1.setStartTime("1/86");
forecast1.setSeasonalLength(12);

//set number of forecasts desired
forecast1.setNumberOfForecasts(24);

//set model type and parameters
forecast1.setModelType("ARIMA");
forecast1.setArimaD(1);
forecast1.setArimaMA(1);
forecast1.setArimaSD(1);
forecast1.setArimaSMA(1);
forecast1.setArimaIncludeConstant(false);

//create a plot bean
TimeSeriesForecastPlot plot1 = new STATBEANS.TimeSeriesForecastPlot();

//set plot features
plot1.setBounds(36,12,450,300);
plot1.setHighlightPointOnMouseClick(true);
plot1.setShowPointClickedMessage(true);

//restrict amount of historical data plotted
plot1.setLastPeriodsToPlot(120);

//add the plot to the application frame
add(plot1);

//make the forecasting bean a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(forecast1.listenerForDataChange);

//make the plot bean a listener for changes in the forecasting bean
forecast1.addDataChangeListener(plot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
