StatBean Name: SimpleRegressionPlot

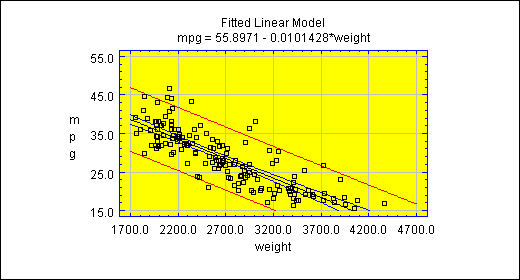

Purpose: Plots the fitted regression model relating Y and X.

DataSource: SimpleRegression or PolynomialRegression.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
confidenceLevel	double	Level of confidence for the prediction and confidence limits. as a percentage.	0.0001-99.9999	95.0
confidenceLimitsColor	Color	The color of the confidence limits.	Any valid Color.	Color.blue
predictionLimitsColor	Color	The color of the prediction limits.	Any valid Color.	Color.red
predictionMeanSize	int	The number of observations averaged in the value for which the prediction limits apply.	1+	1
resolution	int	The number of points along the horizontal axis used to draw the fitted line and limits.	20-2000	200
showConfidenceLimits	boolean	Whether to display confidence limits for the mean of Y.	true,false	true
showPredictionLimits	boolean	Whether to display prediction limits for new observations.	true,false	true
xFromY	boolean	Whether to plot limits using calibration option (locating x for a predicted y).	true,false	false

Other properties are inherited from the java.awt.Canvas class and from the general GraphicalStatbean class.

Code Sample - see SimpleRegression.
