StatBean Name: QuantilePlot

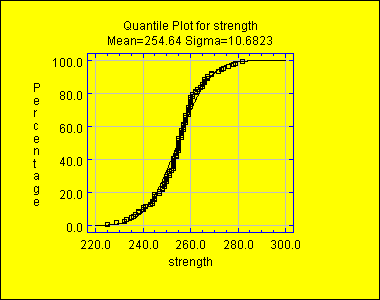

Purpose: Creates a quantile plot for a single column of numeric data.

DataSource: Any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
columnNames	String array	The names of the columns (if more than one) to be analyzed.	One or more strings.	{""}
drawNormalCurve	boolean	Whether to add the best-fitting normal distribution.	true,false	false
drawVertical	boolean	Whether to plot the percentages on the vertical axis.	true,false	true
resolution	int	For continuous distributions, the number of points at which the function is calculated.	50+	500
tablewiseExclusion	boolean	Whether all rows of the data table containing a missing value in any column should be excluded from the plot.	true,false	false
xVariableName	String	The name of the column (if only one) with data values to be plotted on the horizontal axis.	Any string.	""

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\spc.txt");

//create a chart bean
QuantilePlot quantileplot1 = new STATBEANS.QuantilePlot();

//set the column to be plotted
quantileplot1.setXVariableName("strength");

//add a normal curve
quantileplot1.setDrawNormalCurve(true);

//show the plot
add(quantileplot1);

//make the plot bean a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(quantileplot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
