StatBean Name: ProbabilityPlot

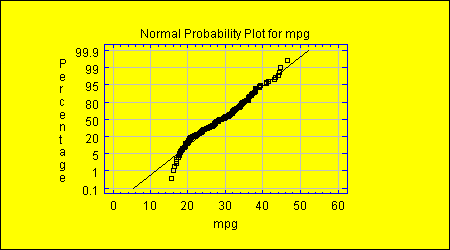

Purpose: Creates a probability plot for a single column of numeric data.

DataSource: Any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
distribution	String	Type of distribution for which plot is constructed.	"Exponential", "Extreme Value", "Logistic", "Lognormal", "Normal", "Uniform", "Weibull"	"Normal"
drawLine	boolean	Whether to add a line to the plot.	true,false	true
drawVertical	boolean	Whether to plot the percentages on the vertical axis.	true,false	true
tablewiseExclusion	boolean	Whether all rows of the data table containing a missing value in any column should be excluded from the plot.	true,false	false
xVariableName	String	The name of the column with data values to be plotted on the horizontal axis.	Any string.	""

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\spc.txt");

//create a chart bean
ProbabilityPlot probabilityplot1 = new STATBEANS.ProbabilityPlot();

//set the column to be plotted
probabilityplot1.setXVariableName("strength");

//define the plot type
probabilityplot1.setDistribution("Normal");

//show the plot
add(probabilityplot1);

//make the plot bean a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(probabilityplot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
