StatBean Name: FactorBoxPlot

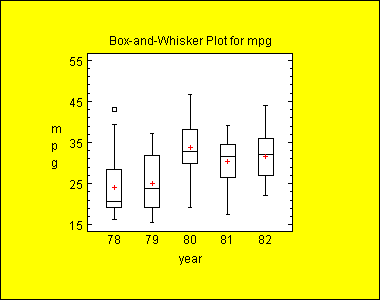

Purpose: Displays a box-and-whisker plot of one numeric variable versus levels of an experimental factor.

DataSource: any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
boxWidth	int	Percentage of plotting area covered by the box.	10-100	40
confidenceLevel	double	Level of confidence for the prediction and confidence limits, as a percentage.	0.0001-99.9999	95.0
drawVertical	boolean	Whether to plot the percentages on the vertical axis.	true,false	true
factorVariableName	String	The name of the column with factor levels.	Any string.	""
flagOutsidePoints	boolean	Whether to add point symbols showing values unusually far from the box.	true,false	true
meanSymbol	boolean	Whether to add a plus sign showing the sample mean.	true,false	true
medianNotch	boolean	Whether to add a notch showing a confidence interval for the median.	true,false	false
includeVariableName	String	The name of an optional column with values indicating which cases should be included (a non-zero value indicates inclusion).	Any string.	""
labelSkipFactor	int	If >1, will skip (labelSkipFactor1-1) labels between each label displayed..	1+	1
rotateClassLabels	boolean	Whether to make the bar labels vertical.	true,false	false
tablewiseExclusion	boolean	Whether all rows of the data table containing a missing value in any column should be excluded from the plot.	true,false	false
xVariableName	String	The name of the column with data values to be plotted.	Any string.	""

Other properties are inherited from the java.awt.Canvas class and from the general GraphicalStatbean class.

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\cardata.txt");

//create a chart bean
FactorBoxPlot plot1 = new STATBEANS.FactorBoxPlot();
plot1.setBackground(java.awt.Color.yellow);
plot1.setBounds(16,30,380,300);

//set the column to be plotted
plot1.setXVariableName("mpg");

//set the factor column
plot1.setFactorVariableName("year");

//set the direction
plot1.setDrawVertical(true);

//show the plot
add(plot1);

//make the plot bean a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(plot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
